Tailpiece for Archtop GuitarStyle vintage Harp Fancy Jazz Chromel Finish

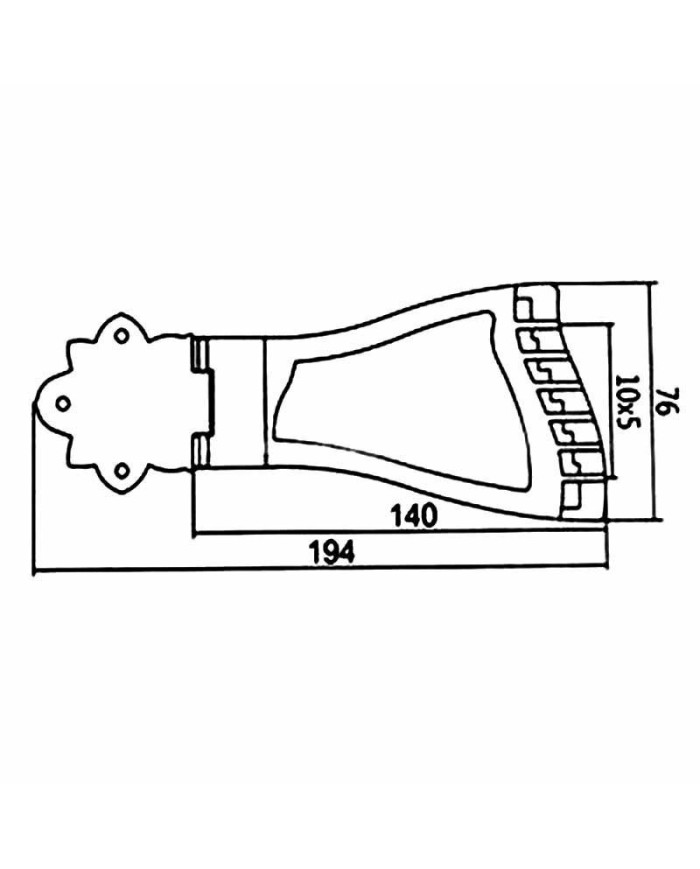

PLEASE NOTE ALL LENGTH DIMENSIONS ARE BASED OFF THE CENTER OF THE HINGE PIN LOCATION.
Length of tailpiece to hinge pin ctr = 5 21/64 inches (135.5mm) Length of mounting plate from hinge pin ctr = 2 17/64 inches (57mm) Width of tailpiece at string through = 3 inches (76.5mm) String Spacing at tailpiece = 13/32 inch (10.2mm)
Width of mounting plate at points by L & R mounting holes = 2 5/16 inches (58.8mm)
Mounting hole locations: 5/16 inch (8.1mm) Bottom mounting hole measured in from point to hole ctr = 27/64 inch (10.8mm)
Distance between left and right mounting holes ctr = 1 11/16 inches
Distance from bottom hole to intersection of left / right mounting hole horizon line, ctr to ctr = 25/32 inch (19.7mm)
Material = zinc die cast with steel bracket and hinge pin
