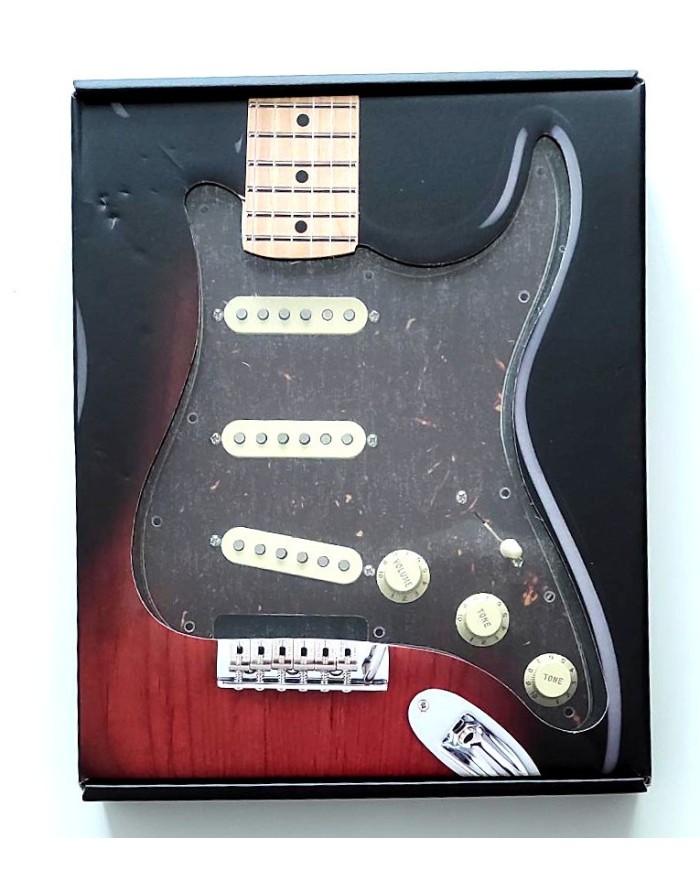

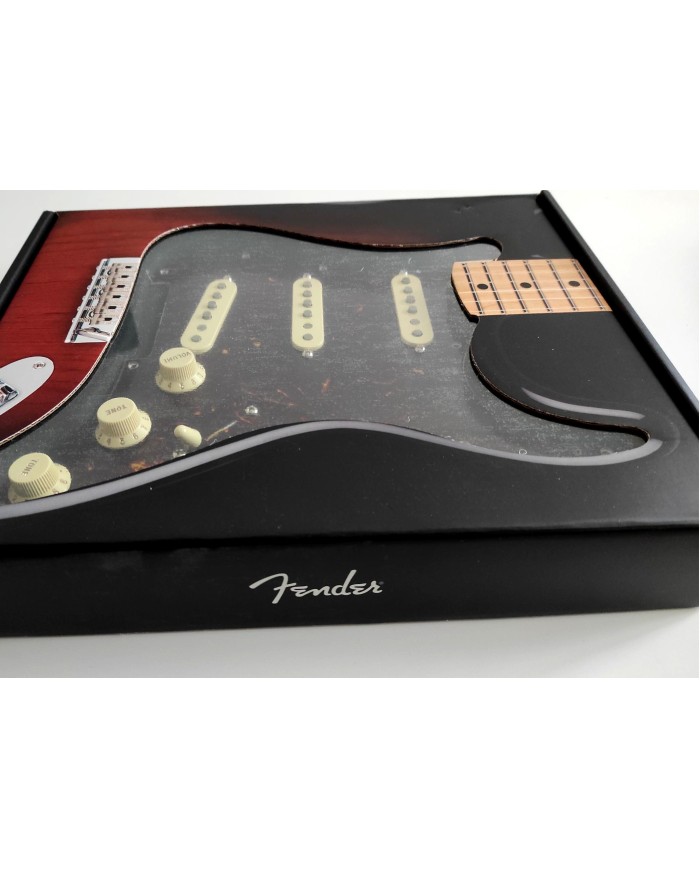

Fender® pre-wired Strat® pickguard, Texas special SSS Tortoise 11H

Fender® pre-wired Strat® pickguard, Texas special SSS Tortoise 11H 099-2342-500

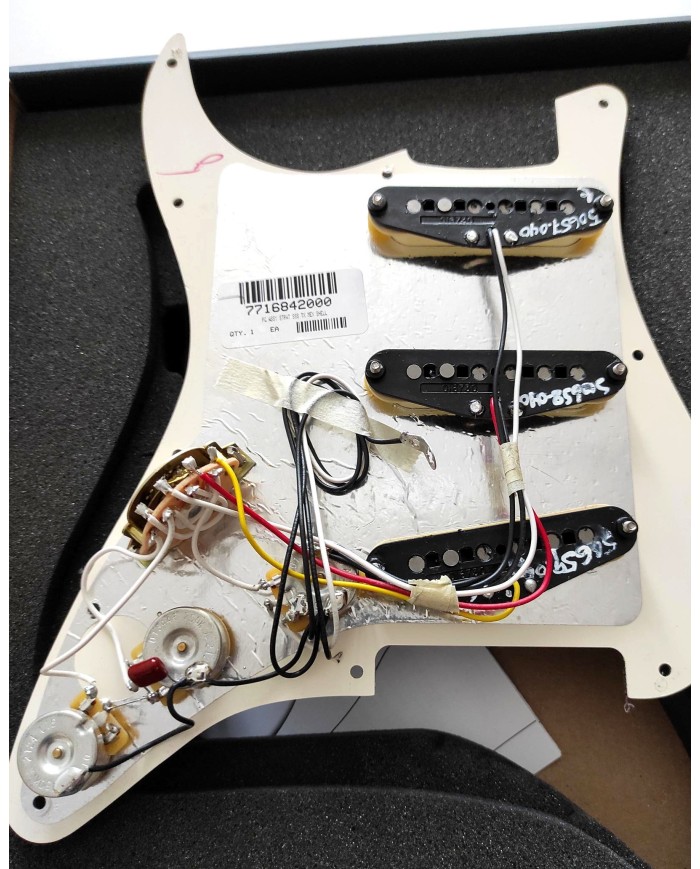

Customize your sound with pre-wired Stratocaster pickguards. This pickguard is made with high-end components in the same factory where our legendary guitars are produced. It is very easy to install. Simply remove your old cover plate, solder the output connector and ground wires, screw on the new plate and voila! You're ready to roar the pure sound of Fender.

Texas special :

As Heard on
Fender American Special Stratocaster® guitars

Characterized by their midrange chirp, crystalline highs and tight bass, Fender Texas Special™ Strat pickups feature an overwound single-coil construction that produces big Texas-blues tone.

Tonal Characteristics
Enamel-coated magnet wire produces warmer vintage-style tones
Middle pickup is reverse-wound to eliminate hum in pickup positions two and four
Over-wound calibrated pickups deliver scorching output
Staggered polepieces balance volume and output across every string
Alnico 5 magnets add more focus and enhanced dynamics
Product Details

Period-correct cloth wire and fiber bobbin construction
Available with white pickup covers
Included Components

Fender Texas Special™ Strat pickups come with all parts needed for installation, including:

Mounting screws
Pickup height adjustment tubing
Wiring diagram

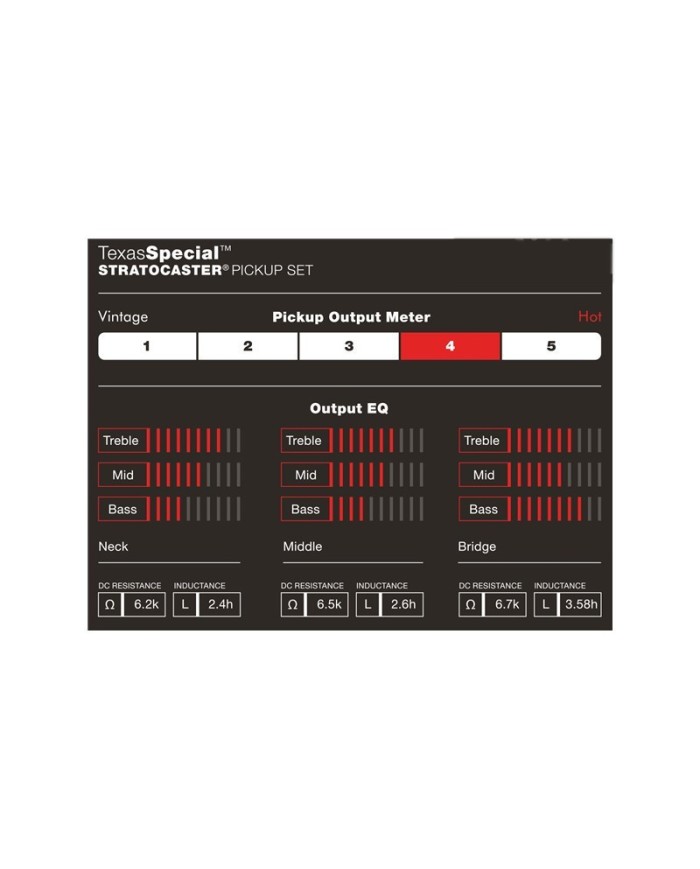

Output Rating (Bass/Mid/Treble)

Neck: 4/6/8
Middle: 4/6/7
Bridge: 8/6/7
Other Specifications

DC Resistance

Neck: 6.2k ohms
Middle: 6.5k ohms
Bridge: 6.7k ohms
Inductance

Neck: 2.4 henries
Middle: 2.6 henries
Bridge: 3.58 henries

Dimensions 1.50x4.75x5.00 IN
Poids 0.69 LB
