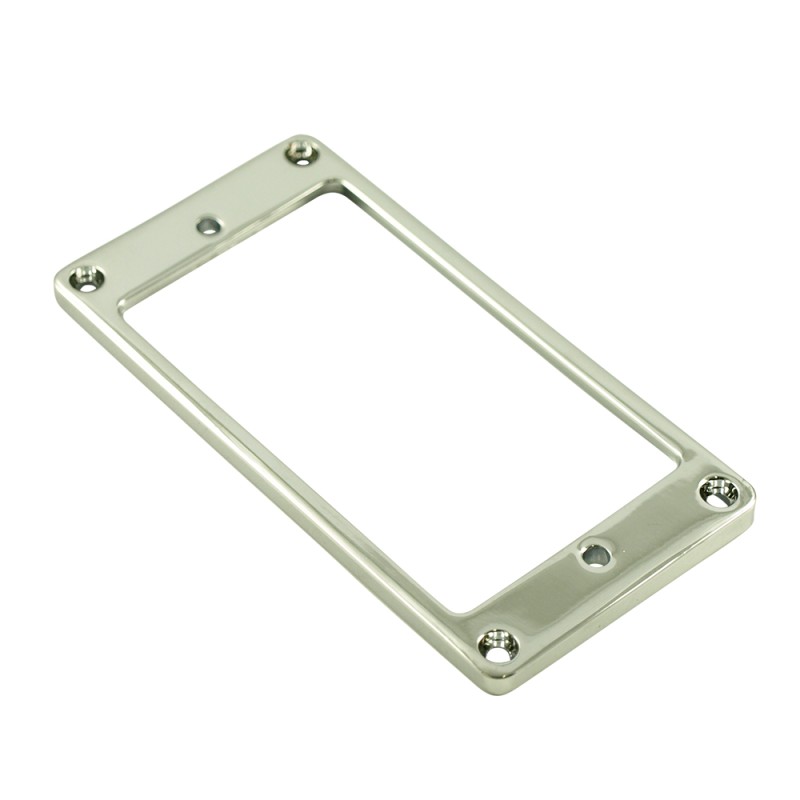

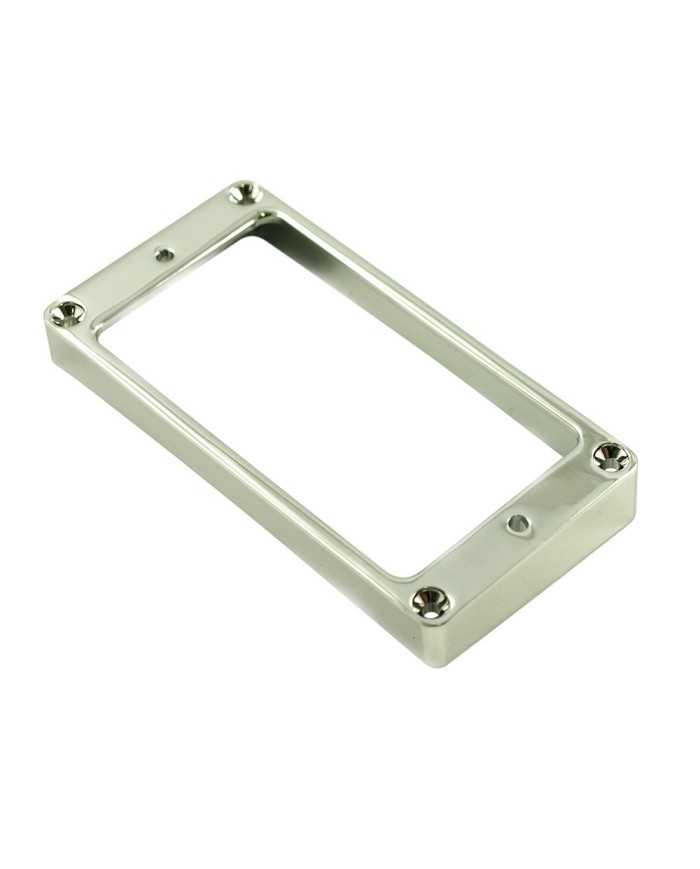

These die cast metal humbucker mounting ring are available in chrome and gold for neck or bridge positions or either flat top or arched top guitars. Direct replacement for all full size humbucking pickup rings. These will match the standard U.S. / Gibson® mounting screw pattern without modification.
High Flat:
- Angled bottom from 5/16 inch height to 3/8 inch height.
- Outer Dimensions = Length = 3 39/64 Width = 1 13/16
- Mounting Hole locations = 3 ¼ inches apart on the length X 1 ½ inches apart on the width
Low Flat:
- Angled 11/64 inch height to 13/64 inch height
