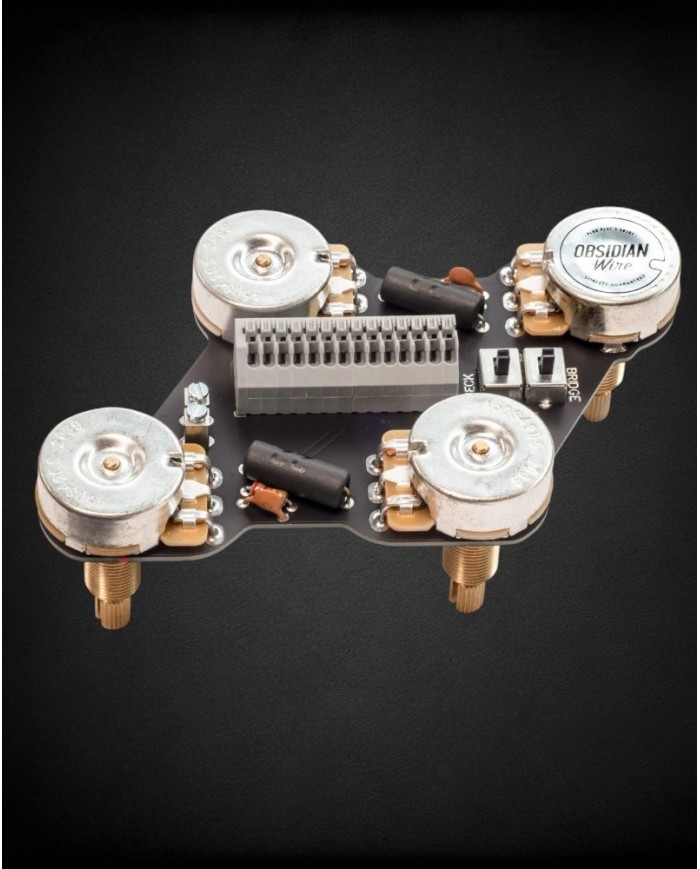

Two Wiring Philosophies in One Kit
The ObsidianWire Vintage MKII is a true evolution of traditional Les Paul electronics. Fully pre-wired and factory-tested, it installs quickly thanks to the exclusive Plug, Play & Enjoy system, without the need for a soldering iron.
Its uniqueness lies in bringing together two of the most sought-after wirings by guitarists: the Vintage 50's and the 60's Plus. You choose the one that best suits your playing style, directly from the electronic kit.
Vintage 50's or 60's Plus?
The Vintage 50's mode replicates the behavior of the historical wiring of the early Les Pauls. By reducing the volume, a slight treble attenuation naturally accompanies the transition between a warm clean sound and a softer saturation.
The 60's Plus mode, developed by ObsidianWire, prioritizes clarity when the volume is reduced. The treble is better preserved to maintain more definition at all volume levels.

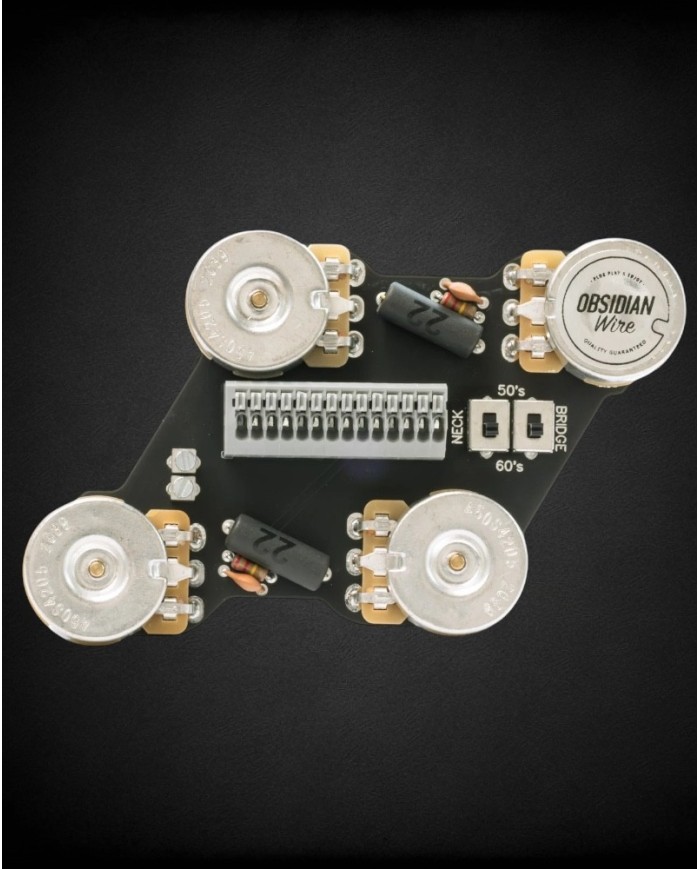

Each pickup has its own selector. You can use a Vintage 50's wiring on the neck pickup and a 60's Plus wiring on the bridge pickup, or vice versa.

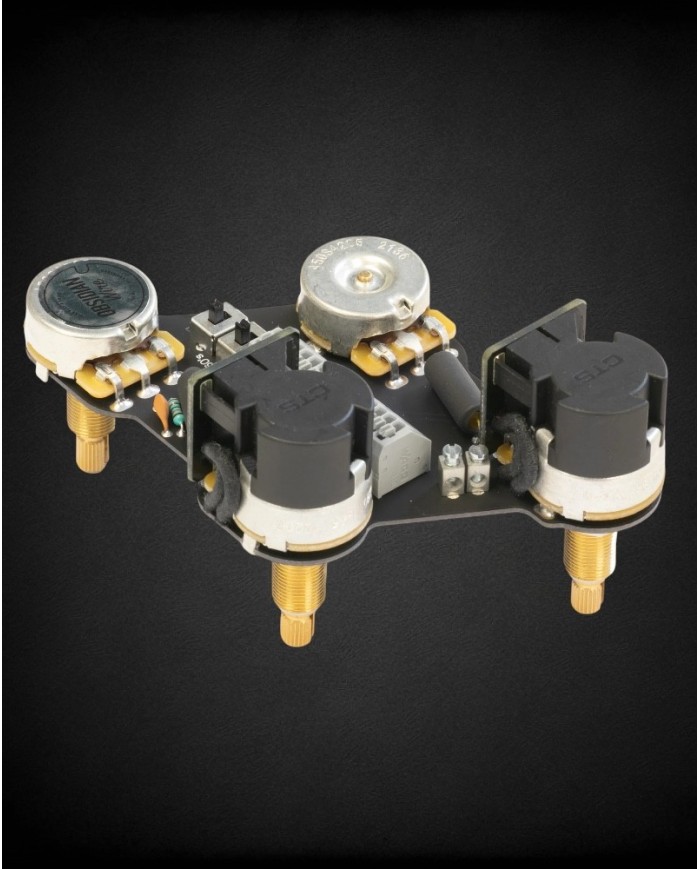

Even More Versatility with the Dual Coil Split
The Vintage MKII is also offered with a Dual Coil Split option.
Thanks to two Push/Pull potentiometers, each compatible humbucker can be used in single-coil mode, offering more open sounds and more tonal possibilities.
This version requires humbuckers equipped with four conductors.
High-Quality Components
- ObsidianWire Custom CTS 500 kΩ potentiometers.

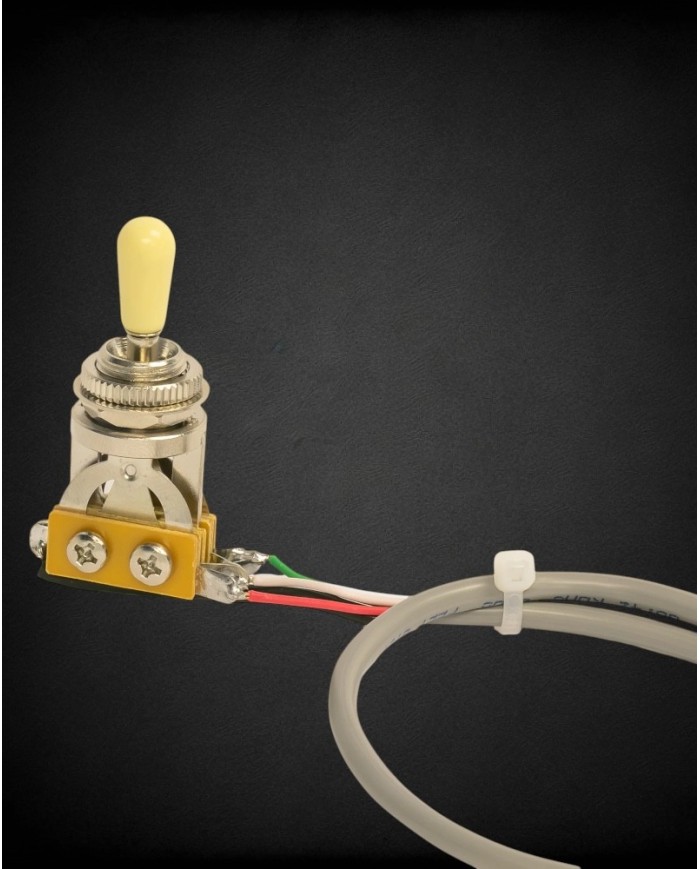

- Pre-wired Obsidian Select Pro switch.
- 0.022 µF polyester capacitors.

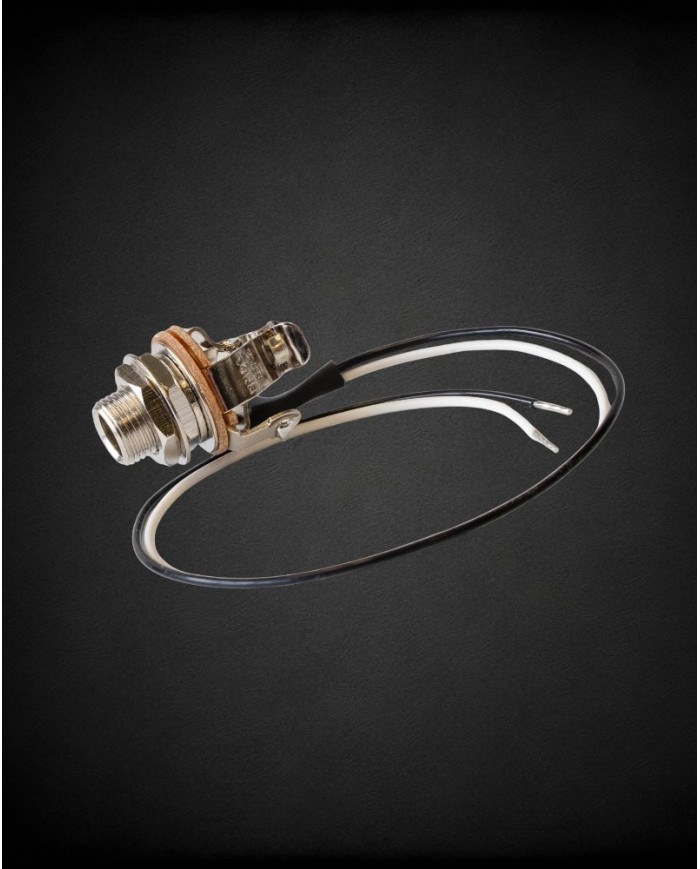

- Pre-wired Switchcraft or Pure Tone jack depending on the versions.
Each kit is assembled and checked before shipping to ensure easy installation and reliable operation.
Features
- Solderless installation.
- Compatible with Les Paul guitars equipped with two humbuckers.
- Selectable Vintage 50's / 60's Plus wiring.
- Independent settings for each pickup.
- Optimized volume and tone controls.
- Dual Coil Split option available.
- CTS Custom 500 kΩ potentiometers.
- Obsidian Select Pro switch.
- Pre-wired jack included.
- 5-year manufacturer warranty.
Compatibility
Compatible with Gibson Les Paul guitars as well as most Epiphone Les Pauls, subject to the electronic cavity configuration.
Why Choose ObsidianWire?
ObsidianWire develops electronic kits that simplify modifications while using professional-quality components. Each kit is designed to offer quick installation, excellent reliability, and great scalability.
ADP Guitar Parts is an official ObsidianWire dealer. We offer authentic products, quickly shipped from France, as well as advice to choose the electronic kit suitable for your guitar.
