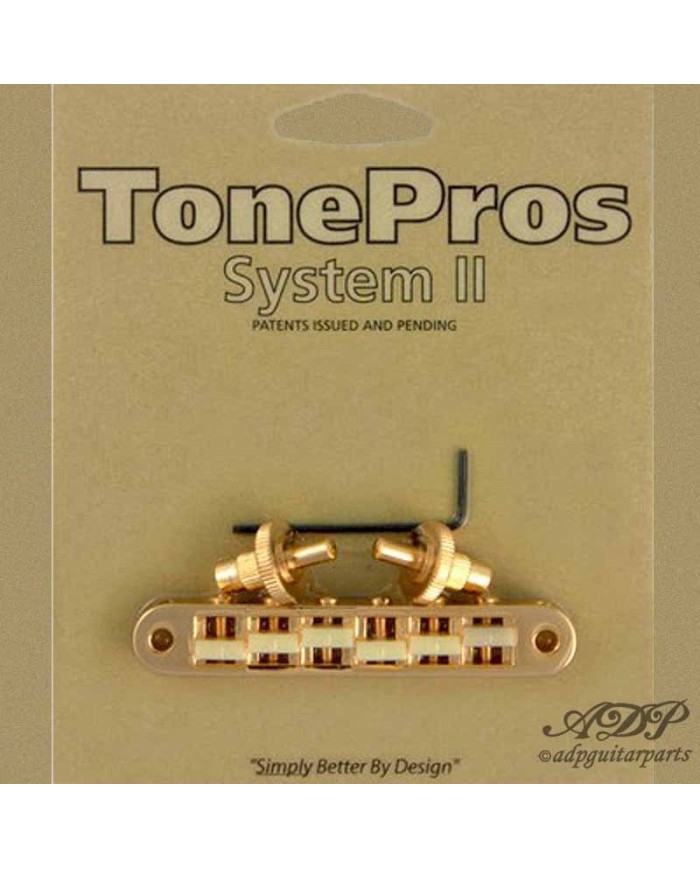

Gold TonePros Nashville Tune-O-Matic G-Formula 66' Bridge

Small Post (inch Size) G-Formula Saddle Replace Tune-O-Matic Bridge Gold Finish

This is the new locking version of the standard Nashville Tune-O-Matic with the newly-developed G-Formula saddles. This new formula is improved over the original synthetic saddles that were used on Gibson® instruments dating back to the early 60's. The formula has been redeveloped and is vastly superior in both life and tone. Would you expect anything less from TonePros®? TonePros® bridges are designed to secure solidly to your guitar and not come loose or fall off when the strings are removed adding both security and sustain. This model fits your Gibson® Les Paul®, SG®, ES-335® as well as most other USA made guitars.

TonePros Standard (US/Imperial Thread) Tune-O-Matic Bridge w/ GraphTech Graphite Saddles

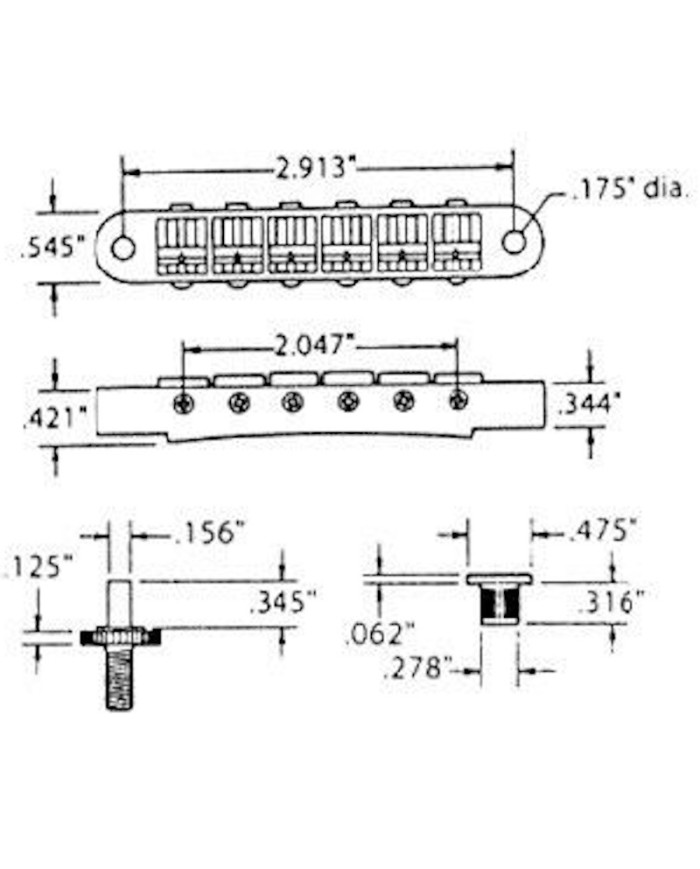

Thread = 5mm Metric (as used by Gibson on Nashville Models)

Post to Post Spacing = 2.93 Inches/ 74.5mm

Saddle Notch = Pre-Notched Saddles

Saddle Material = Graphite (Made by GraphTech)

Bridge Material = Zmac

Post/Thumbwheel Material = Brass; Radius = 12 inch

String Spread = Approx. 10.4mm

Post Top Width = .15 Inches/ 4mm

Bridge Stud Diameter = 4 mm w/ Smooth Top

Bridge Center To Center Spacing = 2.95 inches

TonePros engineers have completed work on a special proprietary formula based on the original vintage Nylon 66 saddle material found in guitars of the late 50′s and early 60′s. This new material retains the tone of the original Nylon 66 saddles, but adds other hi-tech ingredients that provide a new “slippery” surface. This prevents string breakage and provides superior durability, preventing saddle wear and the breakage problems of earlier Graphite materials.Locking Nashville style bridge with many improvements including intonation adjustment on the pickup side; Phillips head saddle adjustment screws, and pre-notched saddles for quick installation. Standard small post and standard threaded insert (same as TP6). Direct retrofit for most USA guitars without modification
