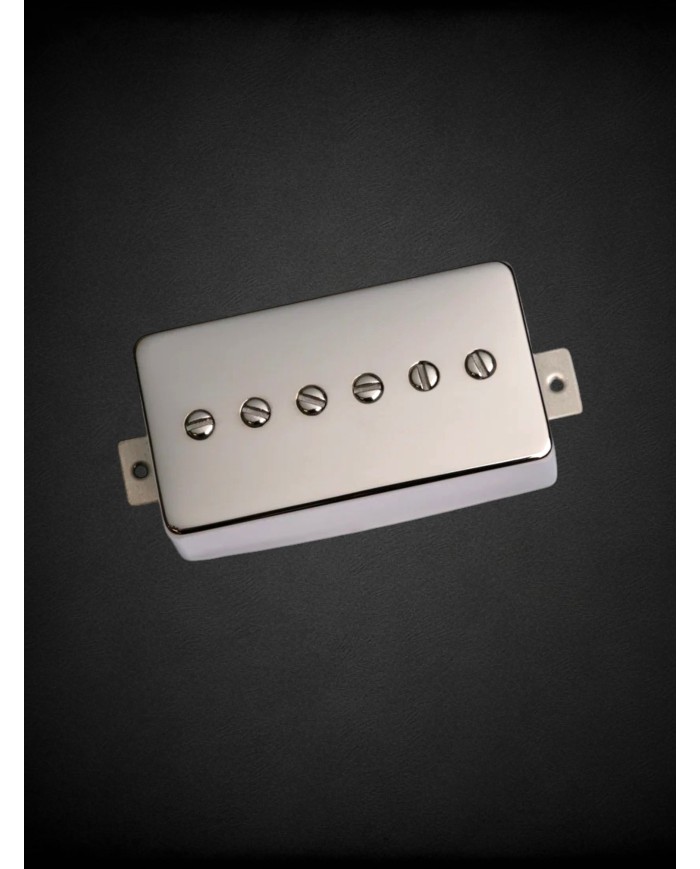

Pickup P90 Rebel Bridge, Nickel Finish
Want the characteristic grain of a P90 without modifying your guitar equipped with humbuckers?
The Rebel 90 Bridge in Nickel finish is the ideal solution to transform your sound while maintaining the standard humbucker format.
A bold character, between single coil and humbucker
Powered by two Alnico 2 bar magnets, the Rebel 90 offers:
• Solid and deep bass
• Precise and defined treble
• Rich and expressive midrange
• Excellent dynamics under the fingers
The result: a pickup that finds the perfect sweet spot between the clarity of a single coil and the density of a humbucker. Ideal for rock, blues, indie, garage, or any style requiring character and presence.
In bridge position, with its 7.9kΩ, it delivers a slightly more powerful and incisive signal than the neck version, perfect for sharp rhythms and solos that cut through the mix.
Humbucker format, simplified installation
The Rebel 90 is designed in standard humbucker format, allowing for direct installation without modification of the routing.
• #3-48 screws and springs provided
• Complete installation guide included
• 2-conductor wiring
An excellent upgrade to bring new life to a guitar equipped with original humbuckers.
Nickel Finish
The Nickel finish offers an elegant and timeless look that integrates perfectly with most electric guitars.
It is particularly suitable for:
• Vintage or modern style instruments
• Guitars equipped with nickel or chrome hardware
• Subtle and elegant customization projects
Its shiny and refined appearance enhances the instrument while maintaining a classic aesthetic appreciated by many guitarists.
Technical Specifications, Rebel 90 Bridge
Model: R90V-B
Position: Bridge
Magnets: Double Alnico 2 bar
Resistance (DCR): 7.9kΩ
Inductance: 4.2H
Cable: 2 conductors
Winding direction: Clockwise
Polarity: North Pole Up
